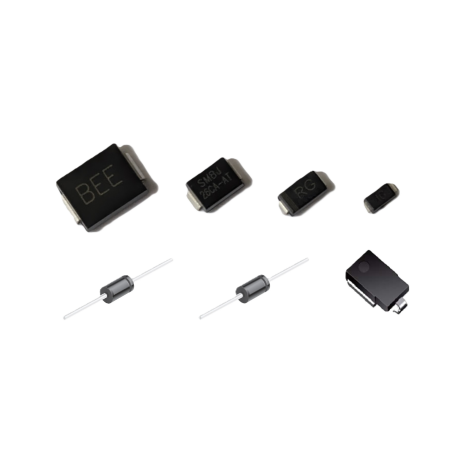

  • Power TVS

    Package : DO-214AC(SMA) / DO-214AA(SMB) / DO-241AB(SMC) / SOD-123FL(SMF) / SMAF / DO-15 / DO-201 / DO-27 / DO-41
    Vrwm : 3.3V ~ 800V
    Automotive-grade packaging：SMF / P4SMA / P4SMFT / SMA / SMB / SMC / SMD / DO-218AB
    200 ~ 30000 Watt peak pulse power
    IEC-61000-4-2 Compliant
    IEC 61000-4-4 Compliant
    AEC-Q101 Qualified
    Rohs and HF compliant

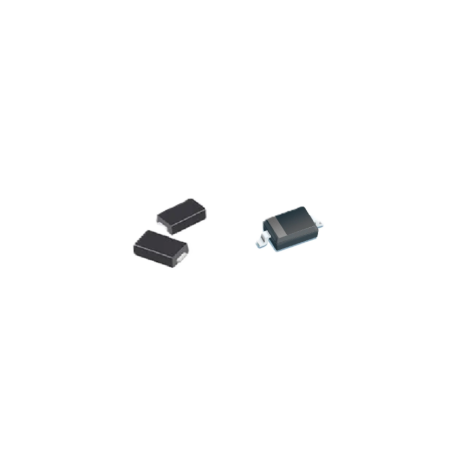

  • ESD

    Package : 標準封裝尺寸(公制和英制) / DFNxxxx Series / SOT-xxx / SOD-xxx
    Vrwm : 1 V ~ 70 V
    Ir : 最低可達0.01 uA
    Cj : 最小可達0.05 pF
    IEC 61000-4-2 (ESD) Compliant
    IEC 61000-4-4 (EFT) Compliant
    IEC 61000-4-5 (Lightning) Compliant
    Low clamping voltage under surge
    RoHS & HF Compliant

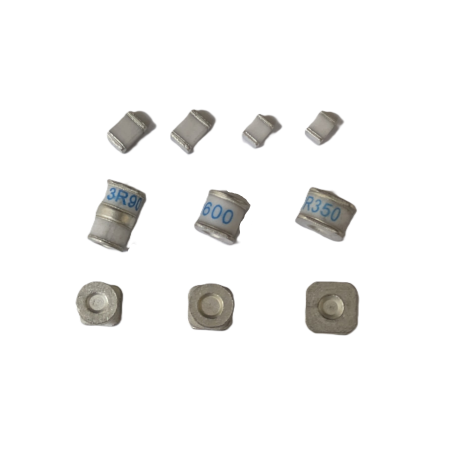

  • GDT

    Package : (L)3.2~6.2 x (W)2.5~6.2 x (H)2.5 ~7.5
    DC Blocking Voltage : 52.5V ~ 720V
    Impulse Spark-over Voltage : 600V ~ 1300V
    Impulse Discharge Current : 1KA ~ 20KA
    Capacitance at 1MHz : 0.5pF ~ 1.5pF
    RoHS & HF Compliant

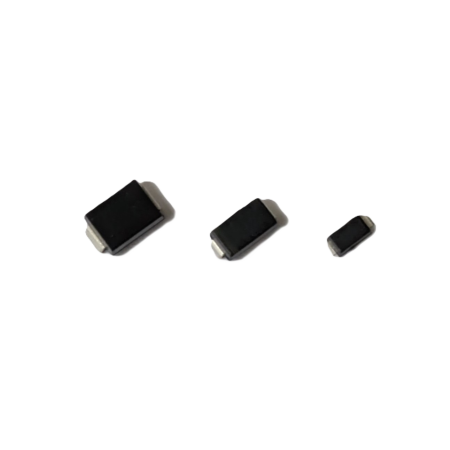

  • TSS Series

    Package : DO-214AC(SMA) / DO-214AA(SMB) / SOD-123FL(SMF)

    Bi-directional crowbar transient voltage protection
    High surge capability
    High off-state impedance
    Low leakage current
    Low on-state voltage
    Short-circuit failure mode
    Excellent capability of absorbing transient surge
    Quick response to surge voltage
    Eliminates over voltage caused by fast rising transients

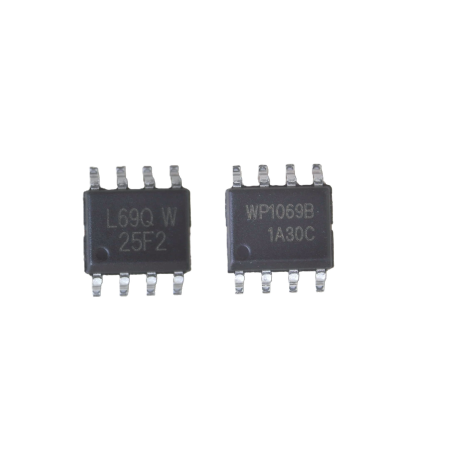

  • TSS_61089

    ◆ Package : SOP-8
    ◆ Dual programmable transient suppressor.
    ◆ Wide negative firing voltage range: V GKRM =-167V max.
    ◆ Low dynamic switching voltage: V FRM and VGK(BD)
    ◆ Low gate triggering current: I GT =5mA max.
    ◆ Peak pulse current: I PP =30A for 10/1000µs surge.
    ◆ Holding current: I H =150mA min.
    ◆ RoHS & HF Compliant

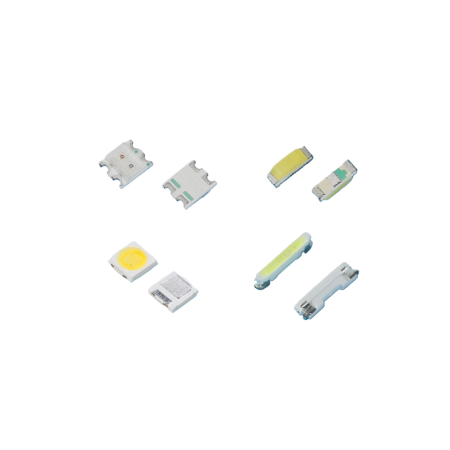

  • Light-Emitting Diode (發光二極體)

    Package : 標準封裝尺寸、PLCC、Side view LED、Chip LED、TOP LED
    電壓（V）: max：3.4
    亮度（mcd）: 30-1000
    發光顏色 : 所有顏色、雙色、閃燈等
    抗静電能力（V） : ≧3000-8000
    RoHS & HF Compliant

  • Schottky diode (蕭基特二極體)

    Package : DO-214AC(SMA) / DO-214AA(SMB) / DO-241AB(SMC) / SOD-123FL(SMF) / SMAF / DO-15 / DO-201 / DO-27 / DO-41
    Vrrm (V) : 20 ~ 201
    IF (A) : 1 ~ 81
    VF (V) : 0.34 ~ 1.01
    IEC 61000-4-2 Compliant
    IEC 61000-4-4 Compliant
    RoHS & HF Compliant

  • Zener diode (稽納二極體)

    Package : DO-214AC(SMA) / SOD系列
    VDC (V) : 50 ~ 1000
    VR(V) : 1 ~ 32
    VZ(V) : 2.4 ~ 46
    IEC 61000-4-2 Compliant
    IEC 61000-4-2 Compliant
    RoHS & HF Compliant

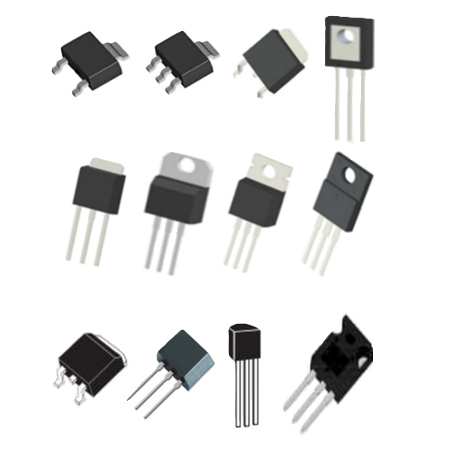

  • SCR

    ◆Surface-Mount Package：SOT-23, SOT-89, SO-T223-2L/3L, TO-252, TO-263
    ◆Through-Hole or Lead Package：TO-92, TO-251, TO-126, TO-202B, TO-220 Series, TO-3P, TO-247, 247S, ITO247
    ◆Chip Property Classification：Unidirectional Thyristor (SCR), Bidirectional Thyristor (TRIAC)
    ◆VDRM(V)：600 ~ 1600
    ◆IT (A)：0.6 ~ 100
    ◆IGT：10uA ~ 50mA
    ◆Junction Temperature：-40°C ~ 125°C
    ◆High Junction Temperature：The hea...

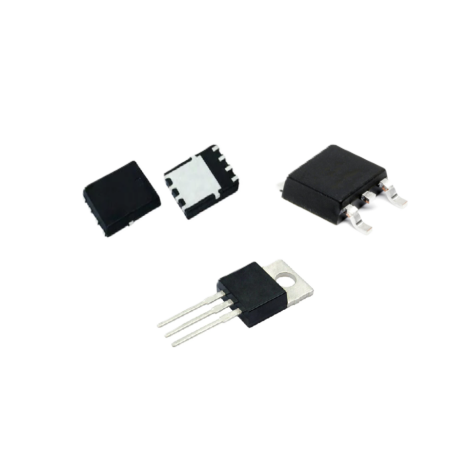

  • MOSFET

    Package : DFN Series / SOT Series / TO Series
    N 、 N/N 、 N/P 、 P 、 P/P
    Vds(V) : -100 ~ 651
    Id (A): -180 ~ 526
    Vth(V) : -1.4 ~ 5.9
    ◆ Load Switch for Portable Devices
    ◆ PWM Applications
    ◆ Motor/Body Load Control
    ◆ DC/DC Converter
    ◆ RoHS Compliant

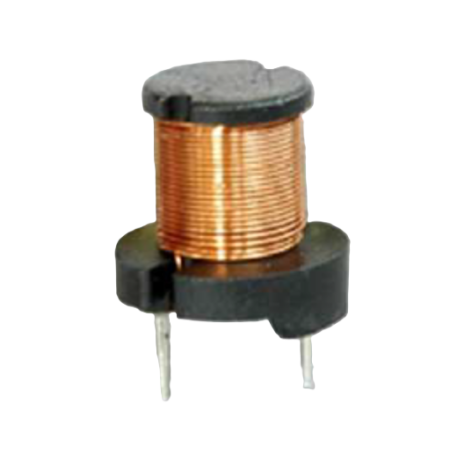

  • I plug Inductors

    磁膠屏蔽電感
    系列 : GDRI
    nH : 6.8uH ~ 1500uH
    Saturation Current : 0.17A ~ 4.2A
    DCR : 0.04Ω ~ 8.0Ω
    尺寸 : 0608 ~ 1012 (外徑*厚度)

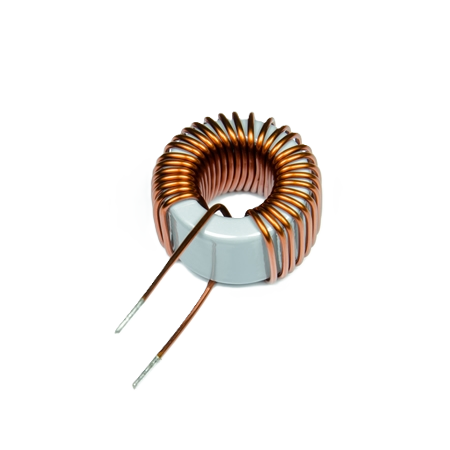

  • Magnetic ring Inductors

    Features
    ◆ 工作頻段阻抗小，干擾頻率阻抗大
    ◆ 高導慈率，低損耗，電桿量幾微亨(µH)至幾百毫亨(mH)
    ◆ 最大工作電流可達幾十安培(A)
    ◆ 電感質穩定，熱穩定性好
    ◆ 飽和電流大，漏磁小，環保無鉛產品
