Low Cap TVS

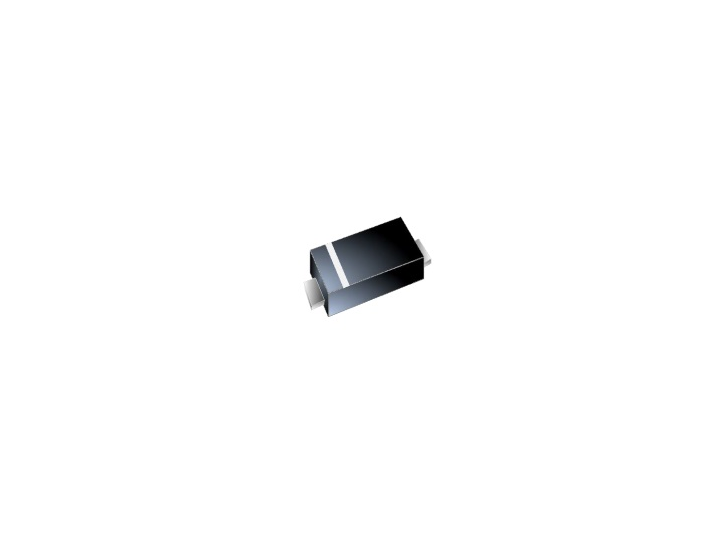

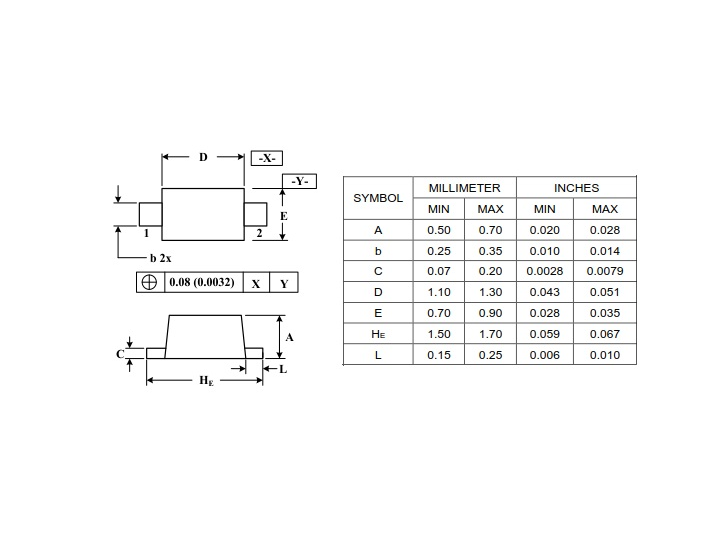

SOD-523

Features
 200 Watts​ / 600 Watts Peak Pulse Power per Line (tp = 8/20μs)
 Replacement for MLV (0603)
 Protects one I/O or power line
 Low Clamping Voltage
 Working Voltage: 12V / 36 V
 Low Leakage Current
 Response Time is Typically < 1 ns

Applications
 Cellular Handsets & Accessories
 Personal Digital Assistants (PDAs)
 Notebooks & Handhelds
 Portable Instrumentation
 Digital Cameras
 MP3 players ​
