Low Cap TVS

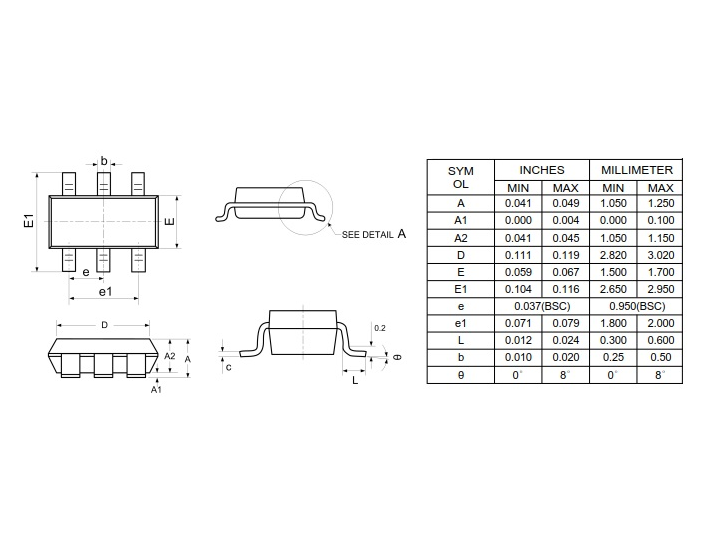

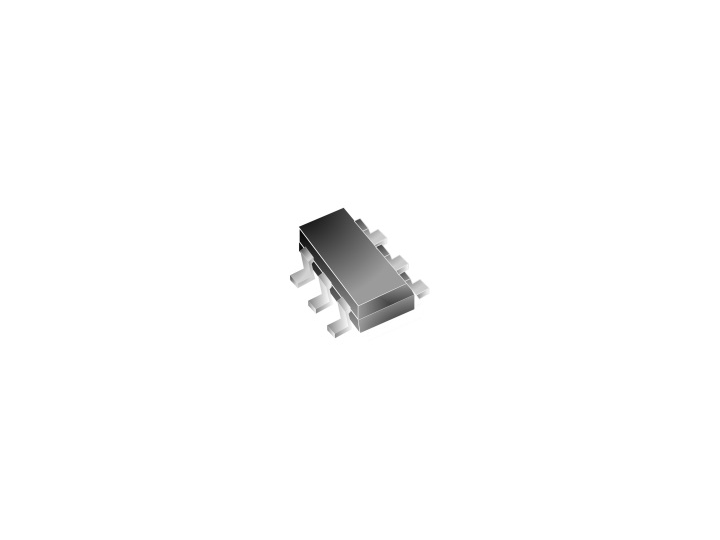

SOT-23-6L

Features

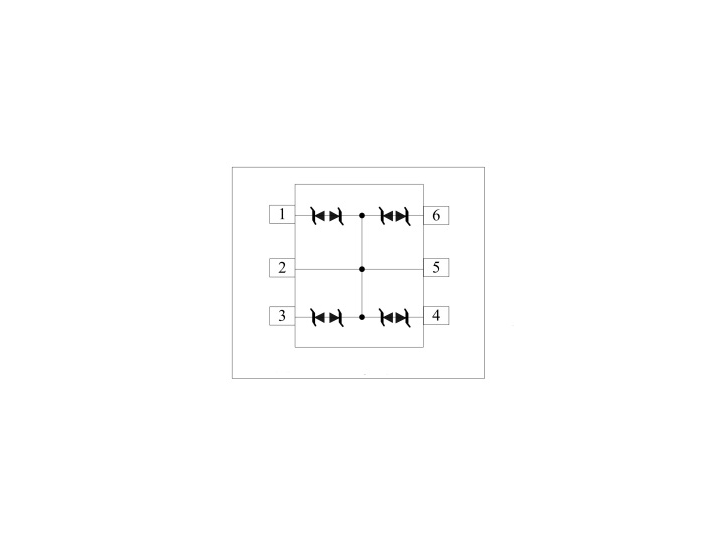

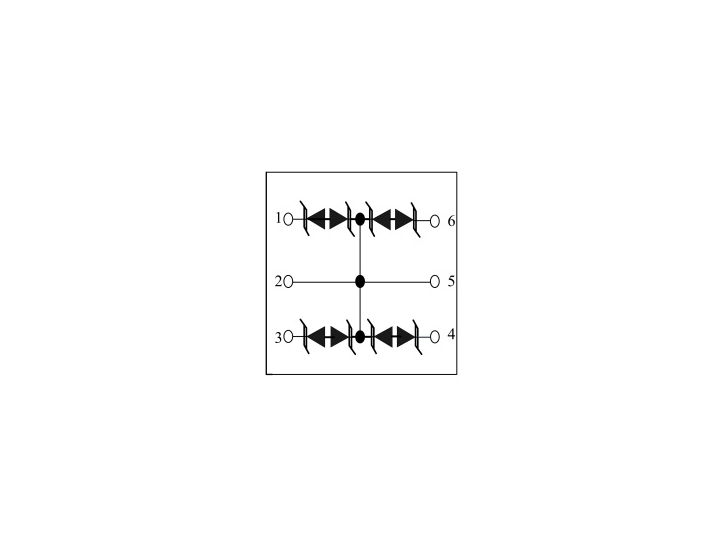

 4 Bidirectional Transil functions
 ESD Protection for data，Signal and Vcc Bus
 Stand off voltage range：±5V
 Low leakage current<1μA
 Peak pulse power（8/20μs）：100W

Applications
 Computers
 Printers
 Communication systems
 Video equipment
 Monitors and Flat Panel Displays​
