Low Cap TVS

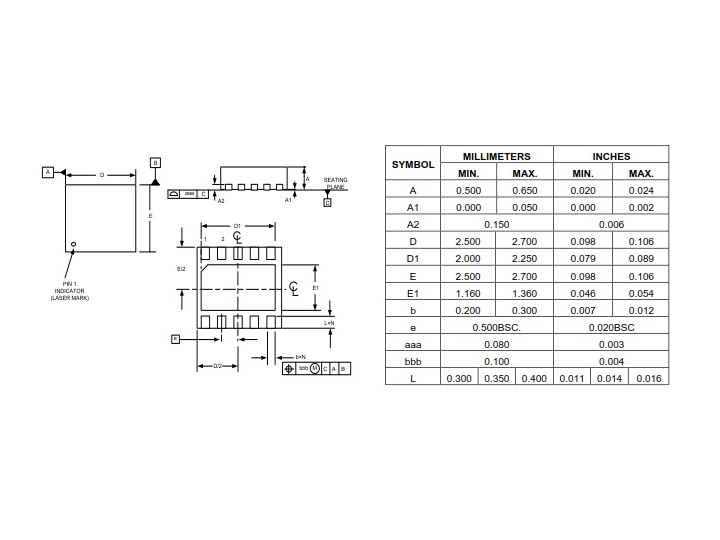

DFN2.6x2.6-10L

Features

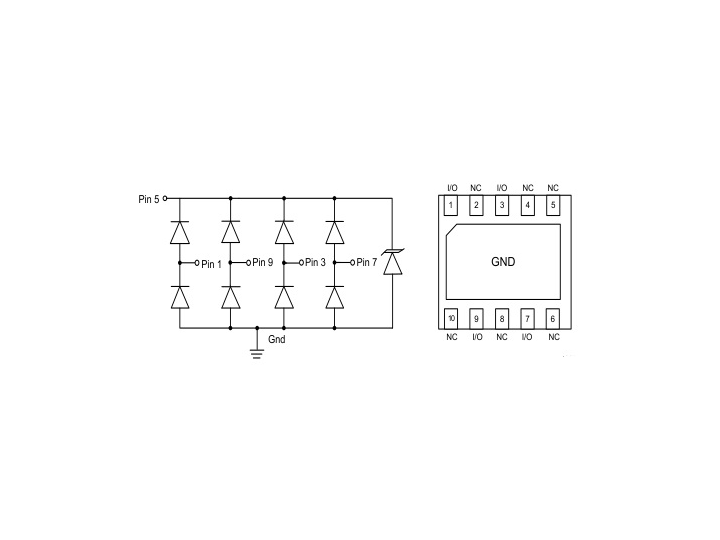

 Array of surge rated diodes with internal TVS Diode
 Small package saves board space
 Protects up to four I/O lines
 Low capacitance (<3pF) for high-speed interfaces
 Low leakage current and clamping voltage
 Low operating voltage: 3.3V
 Solid-state silicon-avalanche technology

Applications
 USB 2.0
 10/100/1000 Ethernet
 Digital Visual Interface (DVI)
 T1/E1 Secondary Protection
 T3/E3 Secondary Protection
 Analog Video
